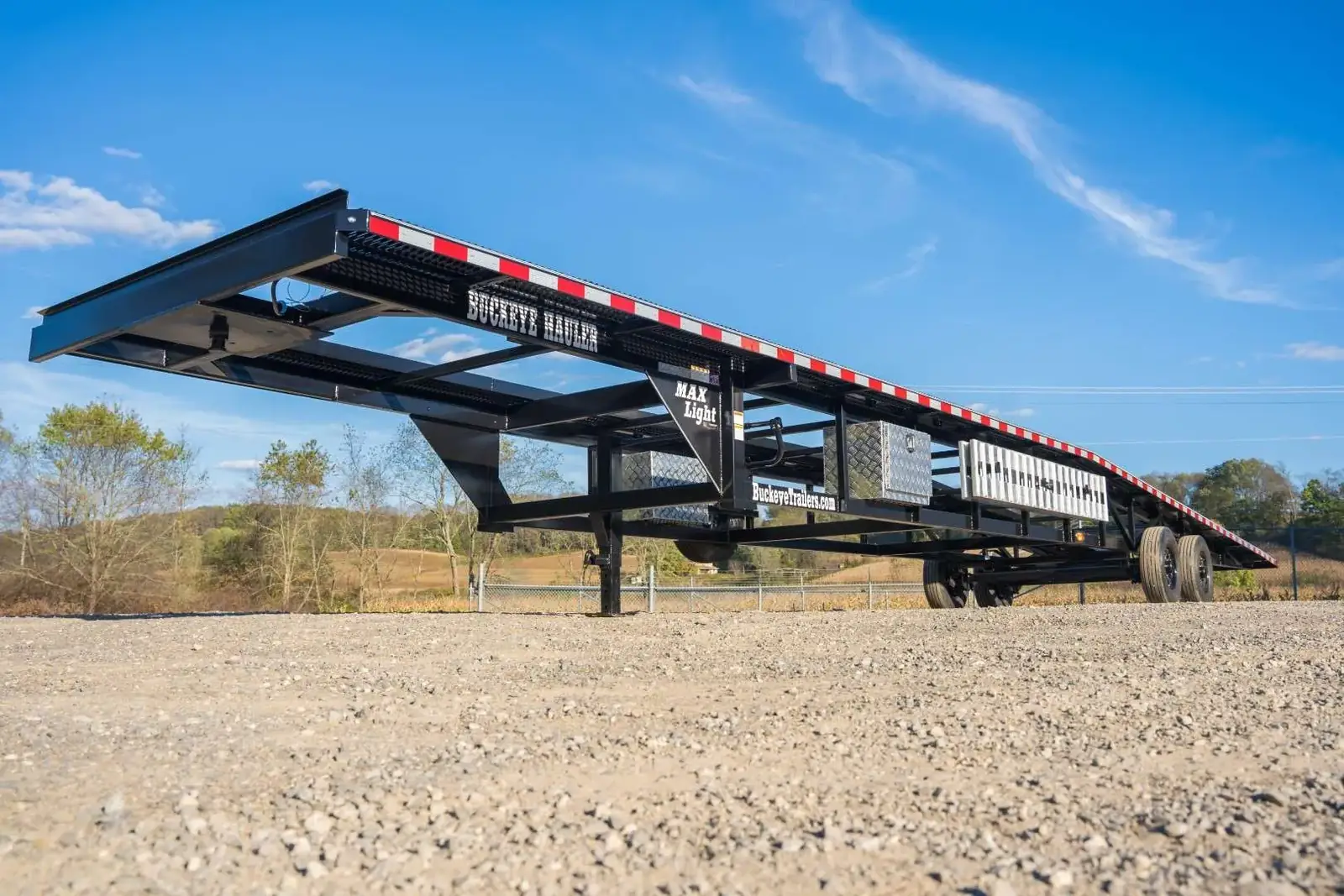

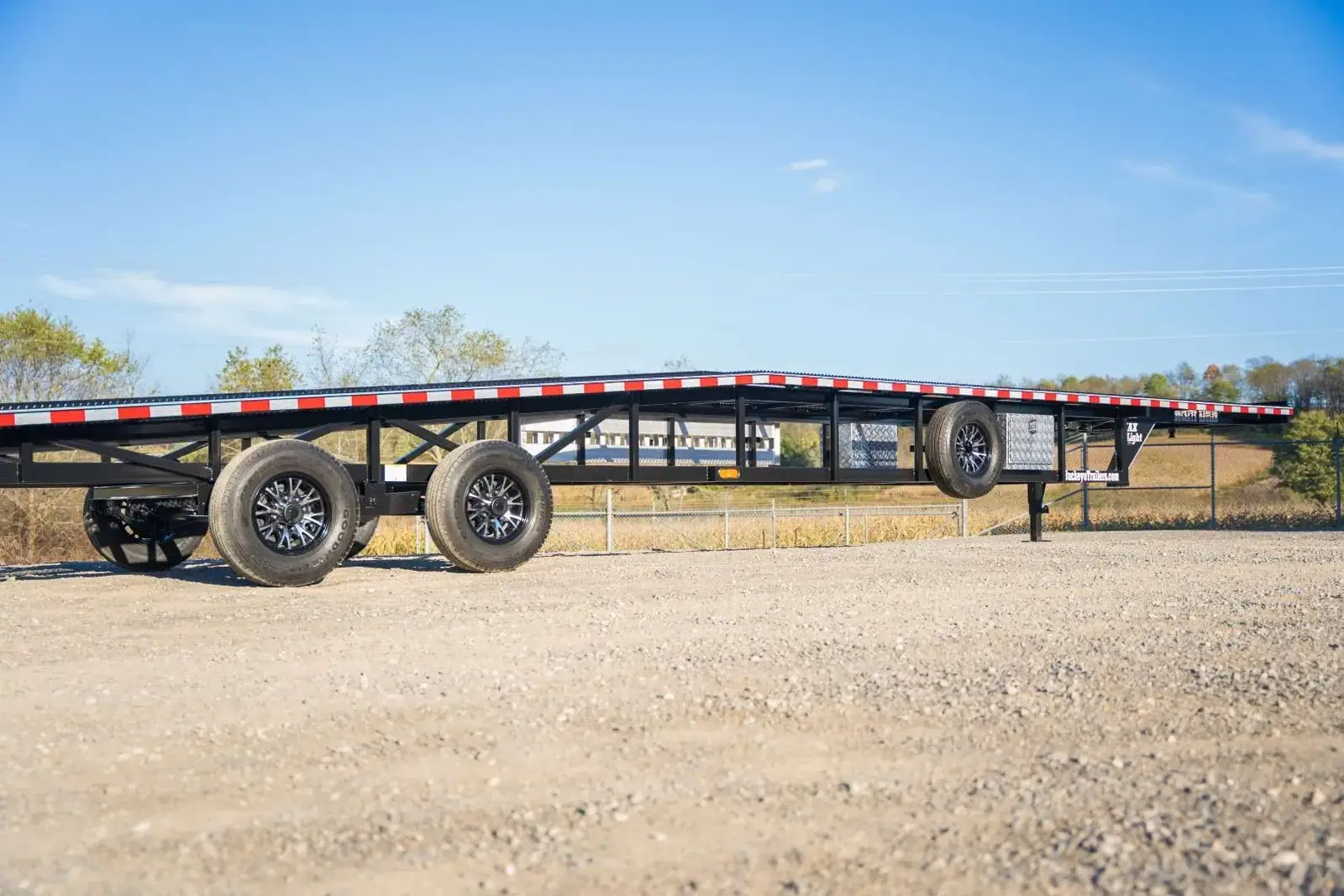

Buckeye Max Light 48' Low Profile
The 3 car hauler most owner operators start with. Light, low and rated from 12,000 GVWR, so it can run behind a 3/4 or 1 ton pickup and stay under 26,001 lbs combined.
- 3cars per trip
- 4,960lbs empty
- 12K to 17KGVWR
- 48 ftdeck
Starting from$18,990
- 3 cars on a 48 ft deck, 52 in deck height
- Rated from 12,000 GVWR for non CDL setups with the right truck
- Two 7K Dexter axles, 9 ft aluminum ramps and a lockable toolbox standard
Build your Max Light 48' Low Profile
Every option below is Buckeye's current option price. Your total and monthly estimate update as you go.
Standard features
Buckeye's published specs for the Max Light 48' Low Profile.
| GVWR | 12,000 to 17,500 lbs |
|---|---|
| Payload | 7,000 to 12,540 lbs |
| Empty weight | 4,960 lbs |
| Deck length | 48 ft |
| Deck width | 96 in |
| Deck height | 52 in |
| Frame | Engineered truss |
| Suspension | Heavy-duty slipper spring |
| Floor | 25 in HD grate engineered for 3-point soft tie system |
| Axles | Two 7K HD Dexter axles |

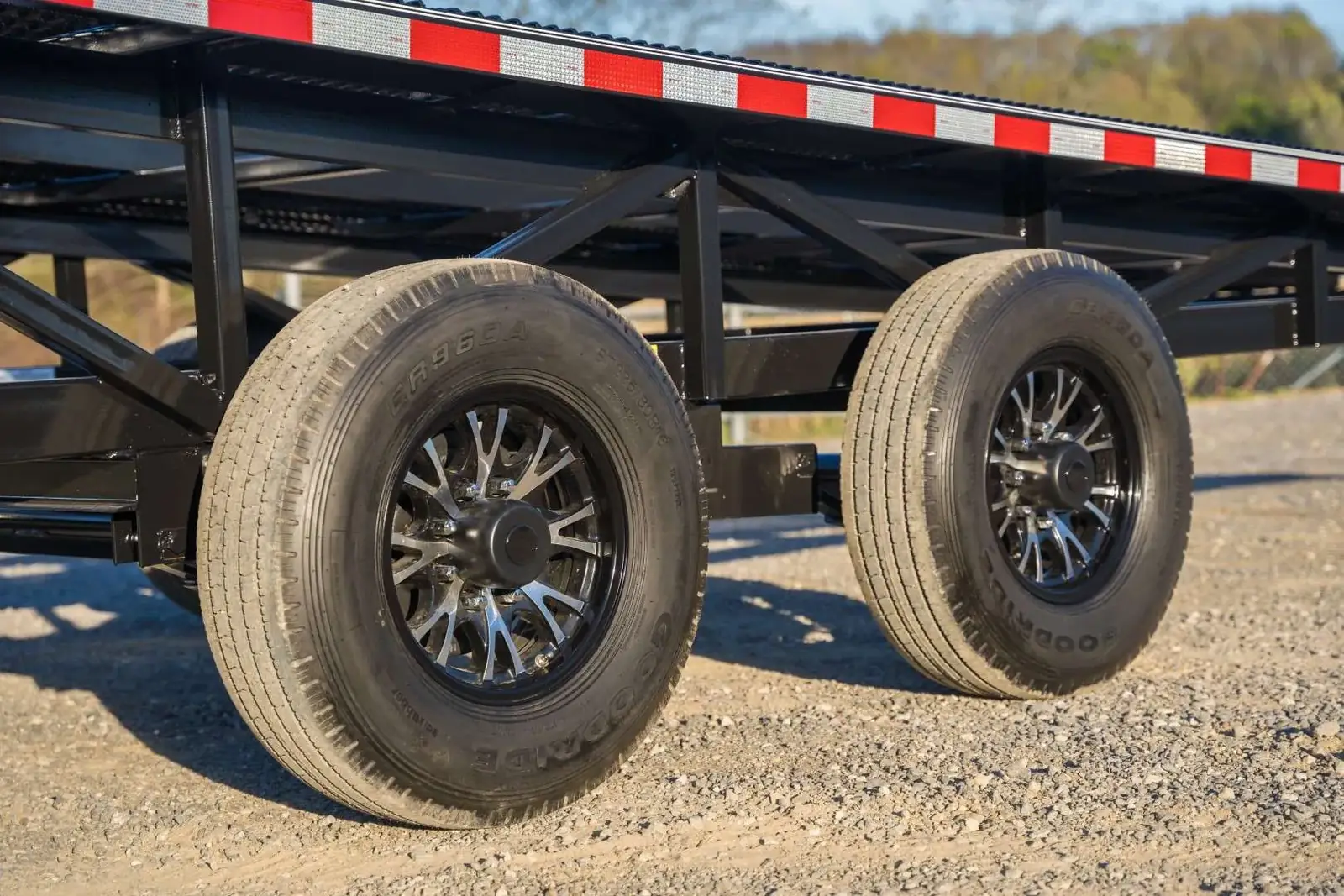

| Tires | 235/80R16 Load Range G |
| Wheels | Premium HD polished aluminum 16 in |
| Bolt pattern | 8 on 6.5 |
| Spare | 235/80R16 Load Range G |
| Jacks | 1 × 12K spring-loaded drop leg jack |
| Brakes | Electric brakes |
| Coupler | King pin with a fifth wheel |
| Runners | 25 in wide HD engineered grate |

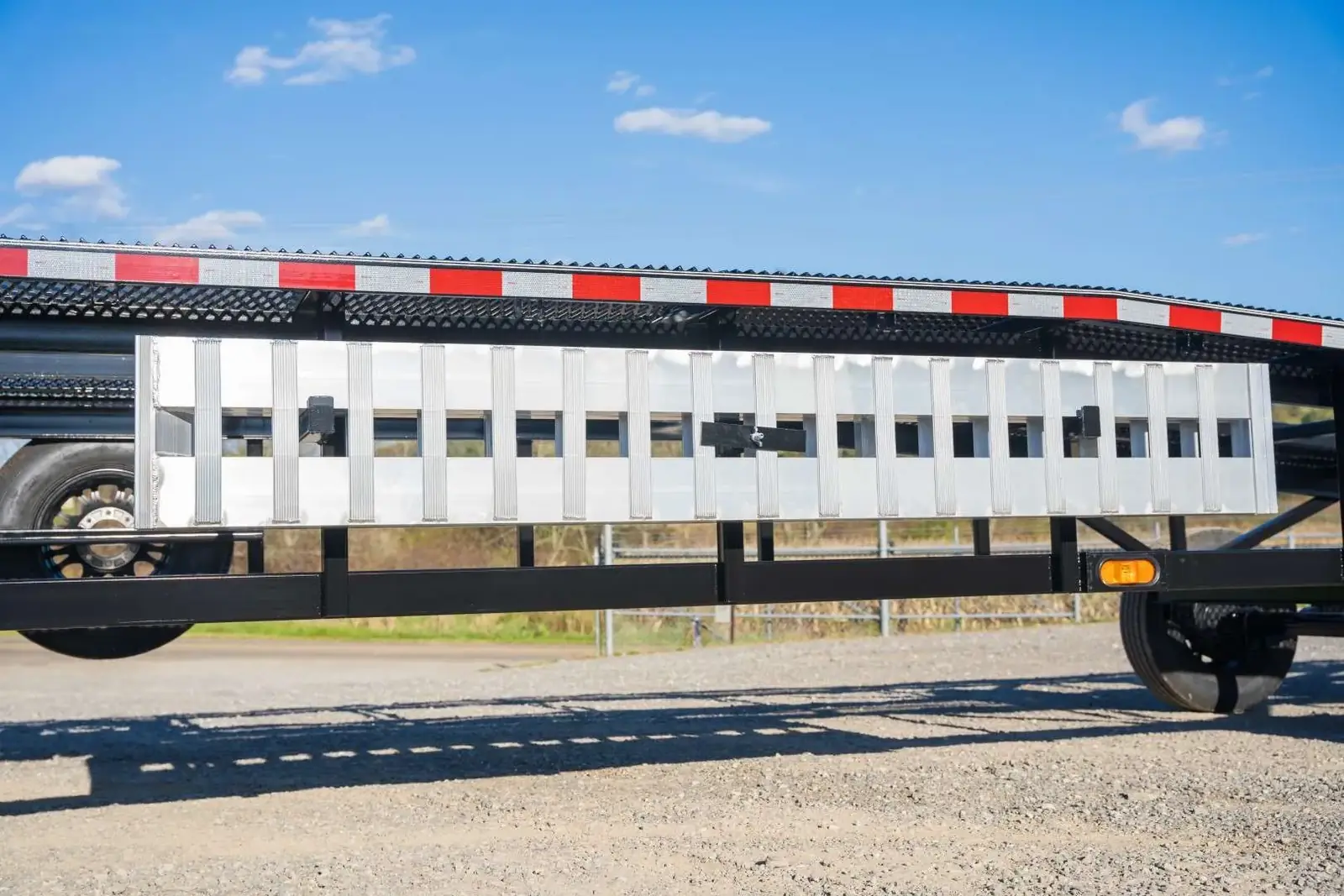

| Ramps | 9 ft aluminum ramps rated for 10,000 lbs |
| Safety | DOT approved reflective tape |
| Trailer plug | 7-way RV |
| Breakaway kit | Breakaway kit & battery box |
| Safety chains | HD 3/8 in safety chains |

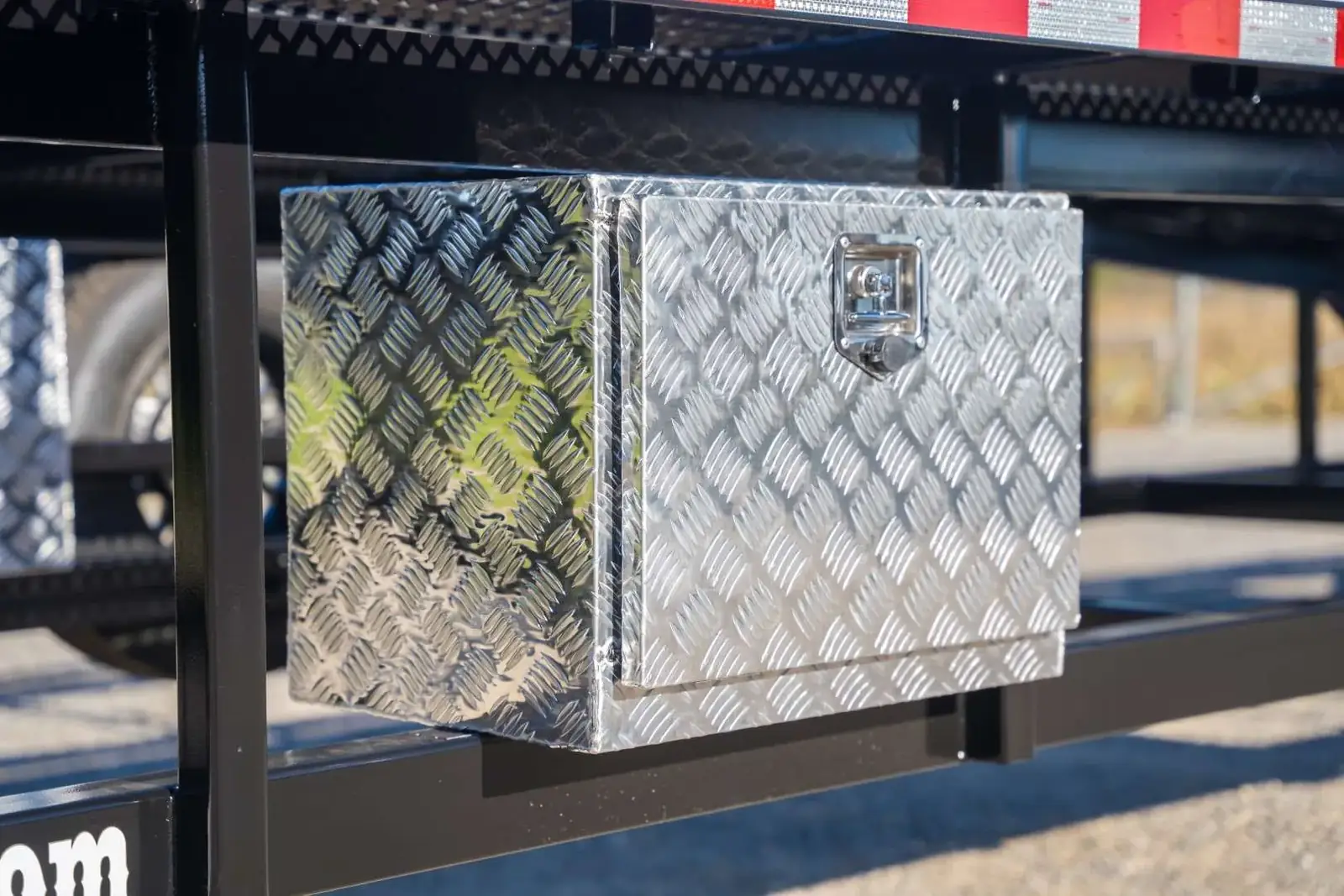

| Storage | 1 aluminum side-mount toolbox with lock |
| Lights | DOT approved LED lighting |
| Finish | Automotive-grade epoxy primer with two top coats of industrial urethane |
| Warranty | 2-year structural frame |
Will this setup need a CDL?
Pick your truck and a trailer rating. We add them up the way federal rules do, and show what you can haul.
- Truck GVWR
- Trailer GVWR
- Combined
- Payload at this rating
A quick guide based on the federal combination rule (49 CFR 383.91): a Class A CDL applies when the combined GVWR is 26,001 lbs or more and the trailer is rated over 10,000 lbs. Your state, how you use the rig and your authority can change this. Truck weights shown are typical; use your door sticker. Ask us before you buy.
Also worth a look
3 car
Buckeye Max Light 48' Low Profile 12K
- 5,200 lbs empty
- 12K to 15K GVWR
- Fifth wheel
Starting from$20,150
Build and price
3 car
Buckeye Max Light 48' Wedge
- 5,100 lbs empty
- 12K to 17K GVWR
- Gooseneck ball
Starting from$18,990
Build and priceAbout the Max Light 48' Low Profile
Straight answers. If yours isn't here, call or text.
Text a questionWhat's included at the starting price?
Everything in the spec table below. Options like wider decks, longer ramps, axle upgrades and light packages are added in the builder with Buckeye's prices.
Can I see one before I order?
Call 305-945-1305 and we'll tell you what's on the lot or on the way. Buckeye also builds to order.
Can I finance it?
Yes. Apply with any of our 9 lenders on the financing page, or ask us which one fits your situation.
