3 car

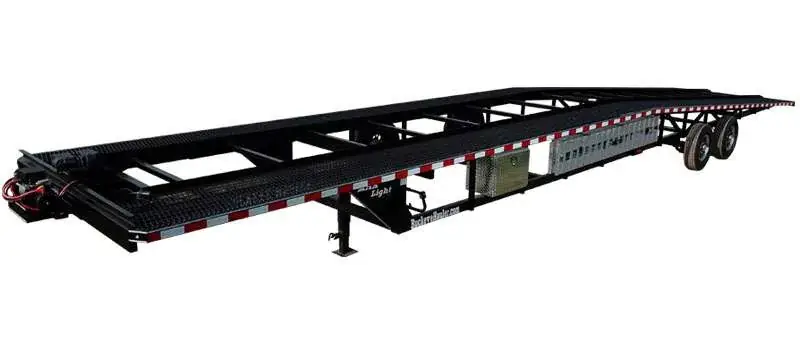

Buckeye Max Light 48' Low Profile
- 4,960 lbs empty
- 12K to 17K GVWR
- Fifth wheel
Starting from$18,990
Build and priceBuckeye Trailers · New

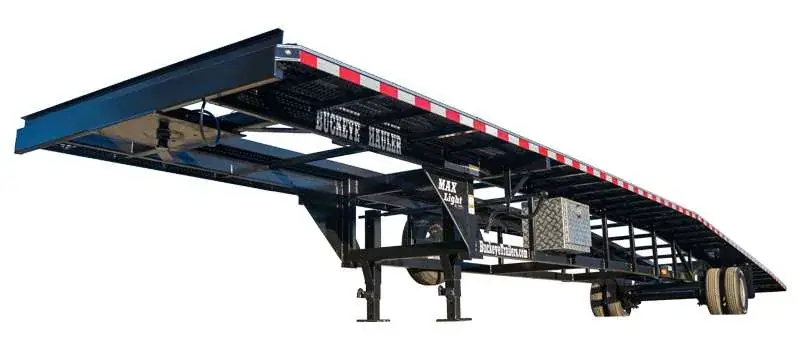

Buckeye Max Light 48' Low Profile 12K
The 48 ft low profile on a single 12K hydraulic disc brake axle with 17.5 in Load Range J tires. Fewer tires to buy, strong stopping power.
- 3cars per trip
- 5,200lbs empty
- 12K to 15KGVWR
- 48 ftdeck
Starting from$20,150
- Single HD 12K axle with hydraulic disc brakes
- 17.5 in Load Range J tires
- 12,000 to 15,000 GVWR
Build your Max Light 48' Low Profile 12K
Every option below is Buckeye's current option price. Your total and monthly estimate update as you go.
Standard features
Buckeye's published specs for the Max Light 48' Low Profile 12K.
| GVWR | 12,000 to 15,000 lbs |
|---|---|
| Payload | 7,000 to 9,800 lbs |
| Empty weight | 5,200 lbs |
| Deck length | 48 ft |
| Deck width | 96 in |
| Deck height | 52 in |
| Frame | Engineered truss |
| Suspension | Heavy-duty slipper spring |
| Floor | HD grate engineered for 3-point soft tie system |
| Axles | HD 12K hydraulic disc brake axle |
| Tires | 215/75R17.5 Load Range J |
| Wheels | Dual steel 17.5 in rims (8 on 6.5 bolt pattern) |
| Bolt pattern | 8 on 6.5 |
| Spare | 215/75R17.5 Load Range J |
| Jacks | 1 dual-speed 12K spring-loaded drop leg jack |
| Brakes | Electric brakes |
| Coupler | King pin with a fifth wheel |
| Runners | 25 in wide HD engineered grate |
| Ramps | 9 ft aluminum ramps rated for 10,000 lbs |
| Safety | DOT approved reflective tape |
| Trailer plug | 7-way RV |
| Breakaway kit | Breakaway kit & battery box |
| Safety chains | HD 3/8 in safety chains |
| Storage | 1 aluminum side-mount toolbox with lock |
| Lights | DOT approved LED lighting |
| Finish | Automotive-grade epoxy primer with two top coats of industrial urethane |
| Warranty | 2-year structural frame |
Will this setup need a CDL?
Pick your truck and a trailer rating. We add them up the way federal rules do, and show what you can haul.
- Truck GVWR
- Trailer GVWR
- Combined
- Payload at this rating
A quick guide based on the federal combination rule (49 CFR 383.91): a Class A CDL applies when the combined GVWR is 26,001 lbs or more and the trailer is rated over 10,000 lbs. Your state, how you use the rig and your authority can change this. Truck weights shown are typical; use your door sticker. Ask us before you buy.
Also worth a look
3 car

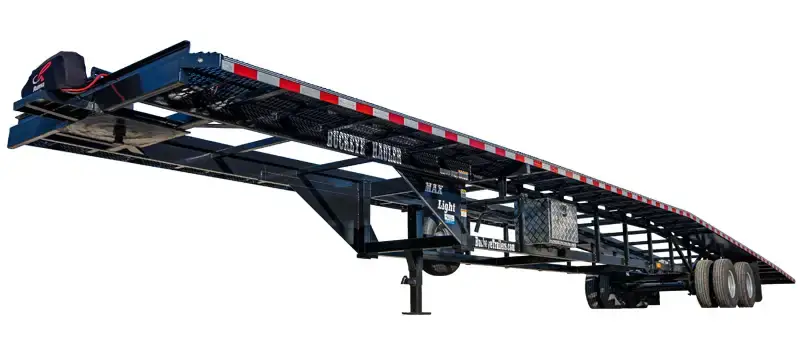

Buckeye Max Light 50' Low Profile
- 6,300 lbs empty
- 21K GVWR
- Fifth wheel
Starting from$21,300
Build and price
3 car

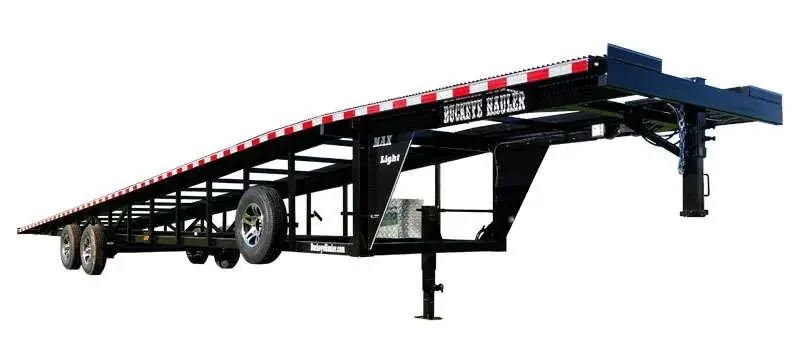

Buckeye Max Light 48' Wedge
